CET4018系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
0.56 18
6.5
3.5
 -40~125.0 SMD 立即购买
1.0 33
3.35
2.34
 -40~125.0 SMD 立即购买
2.2 44 2.7
2.0
 -40~125.0 SMD 立即购买
3.3 70
2.45
1.9
 -40~125.0 SMD 立即购买
4.7 90
1.7
1.7
 -40~125.0 SMD 立即购买
5.6 103
1.6
1.5
 -40~125.0 SMD 立即购买
6.8 124 1.45
1.3
 -40~125.0 SMD 立即购买
10.0 200 1.3
1.1
 -40~125.0 SMD 立即购买
15.0 268 0.94 0.92 -40~125.0 SMD 立即购买
22.0 390 0.8 0.8 -40~125.0 SMD 立即购买
33.0 560 0.65 0.6 -40~125.0 SMD 立即购买
47.0 850 0.57 0.5 -40~125.0 SMD 立即购买

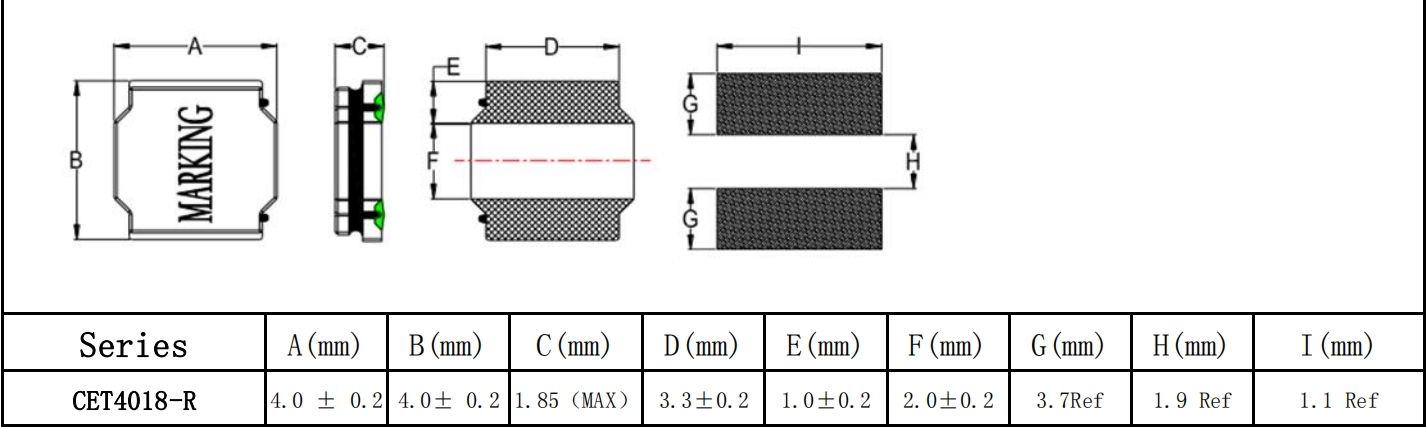

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -40℃ to +125℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
