CET5040系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
1.0 13
7.35
4.9
 -40~125.0 SMD 立即购买
1.5 15
6.3
4.3
 -40~125.0 SMD 立即购买
2.2 19 4.3
3.6
 -40~125.0 SMD 立即购买
3.3 24
3.95
3.4
 -40~125.0 SMD 立即购买
4.7 30 3.5
3.0
 -40~125.0 SMD 立即购买
5.6 33 3.2
2.8
 -40~125.0 SMD 立即购买
6.8 43 2.9
2.5
 -40~125.0 SMD 立即购买
10.0 64 2.35 2.1 -40~125.0 SMD 立即购买
15.0 86 2.0 2.0 -40~125.0 SMD 立即购买
22.0 129 1.6 1.5 -40~125.0 SMD 立即购买
33.0 188 1.3 1.2 -40~125.0 SMD 立即购买
47.0 270 1.1 1.0 -40~125.0 SMD 立即购买
68.0 400 0.9 0.8 -40~125.0 SMD 立即购买
150.0 560 0.75 0.7 -40~125.0 SMD 立即购买

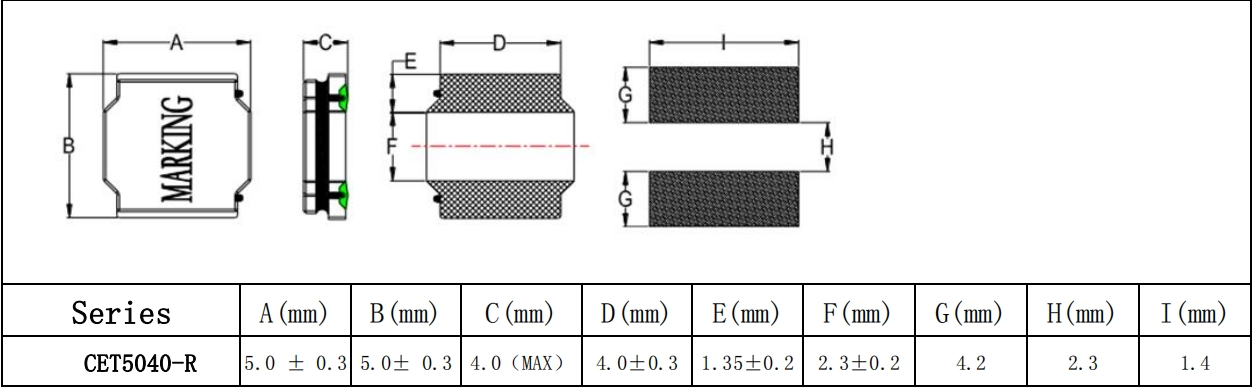

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -40℃ to +125℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
