CET138040T系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
CET138040T-R15M-¨
 0.15 0.41 85.0 45.0 -55~+150 SMD 立即购买
CET138040T-R22M-¨
 0.22 0.45 80.0 45.0 -55~+150 SMD 立即购买
CET138040T-R33M-¨
 0.33 1.12 70.0 35.0 -55~+150 SMD 立即购买
CET138040T-R47M-¨
 0.47 1.12 60.0 35.0 -55~+150 SMD 立即购买

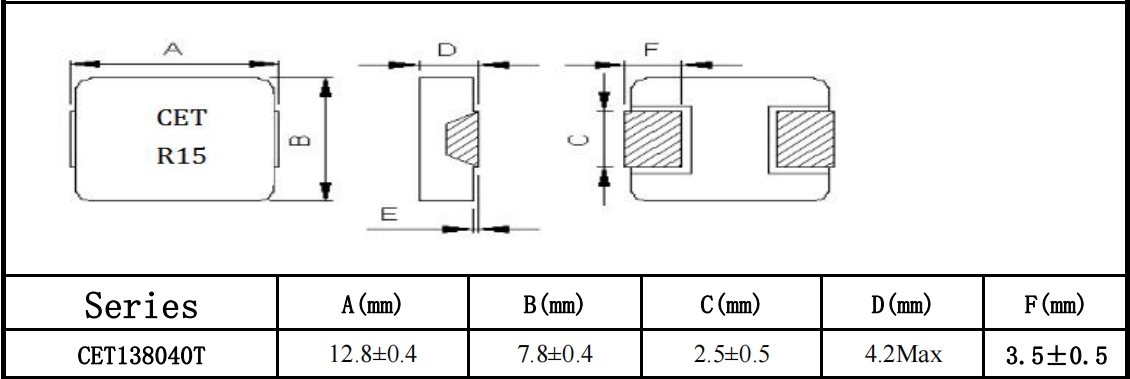

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -55℃ to +150℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
5. Test Frequency: 100KHZ,1.0V
