CET6045系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
1.0 10
9.0
5.1
 -40~125.0 SMD 立即购买
1.5 12
7.5
4.75
 -40~125.0 SMD 立即购买
2.2 13
6.5
4.6
 -40~125.0 SMD 立即购买
3.3 20
5.3
3.2
 -40~125.0 SMD 立即购买
4.7 24 4.5
3.0
 -40~125.0 SMD 立即购买
5.6 31 3.7
2.8
 -40~125.0 SMD 立即购买
6.8 33 3.3 2.7 -40~125.0 SMD 立即购买
8.2 45 3.2 2.6 -40~125.0 SMD 立即购买
10.0 52 3.0 2.5 -40~125.0 SMD 立即购买
15.0 77 2.5 1.9 -40~125.0 SMD 立即购买
22.0 115 2.0 1.5 -40~125.0 SMD 立即购买
33.0 150 1.6 1.45 -40~125.0 SMD 立即购买
47.0 220 1.4 1.2 -40~125.0 SMD 立即购买
68.0 290 1.2 0.9 -40~125.0 SMD 立即购买
82.0 355 1.1 0.85 -40~125.0 SMD 立即购买
100.0 430 1.0 0.8 -40~125.0 SMD 立即购买
150.0 760 0.8 0.7 -40~125.0 SMD 立即购买
220.0 890 0.63 0.55 -40~125.0 SMD 立即购买

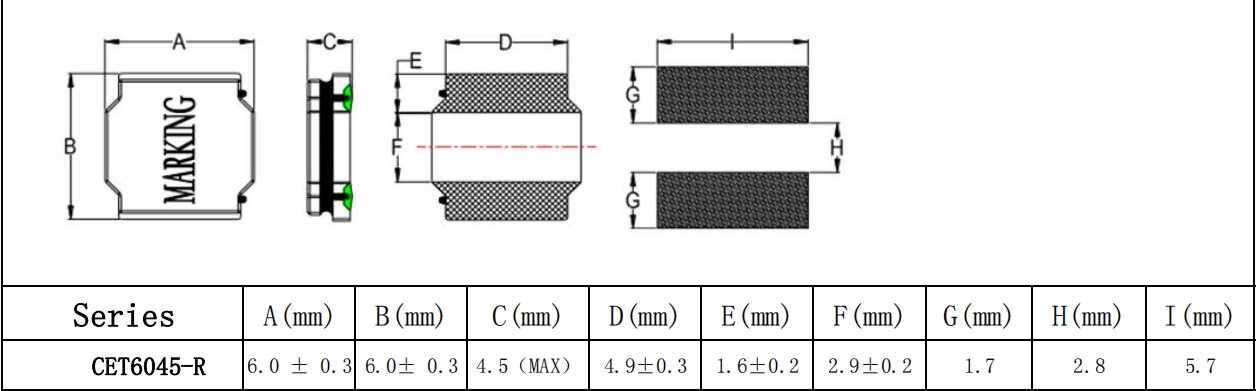

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -40℃ to +125℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
