CET6020系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
0.68 15
7.5
3.8
 -40~125.0 SMD 立即购买
1.0 20
4.8
3.5
 -40~125.0 SMD 立即购买
1.5 25
4.3
3.2
 -40~125.0 SMD 立即购买
2.2 35
3.75
2.75
 -40~125.0 SMD 立即购买
3.3 45
3.15
2.6
 -40~125.0 SMD 立即购买
4.7 58 3.0
2.0
 -40~125.0 SMD 立即购买
5.6 70 2.4
1.9
 -40~125.0 SMD 立即购买
6.8 85 2.2 1.8 -40~125.0 SMD 立即购买
10.0 120 1.75 1.4 -40~125.0 SMD 立即购买
15.0 160 1.5 1.2 -40~125.0 SMD 立即购买
22.0 240 1.25 1.0 -40~125.0 SMD 立即购买
27.0 350 1.15 0.95 -40~125.0 SMD 立即购买
33. 400 1.1 0.9 -40~125.0 SMD 立即购买
47.0 500 1.0 0.8 -40~125.0 SMD 立即购买

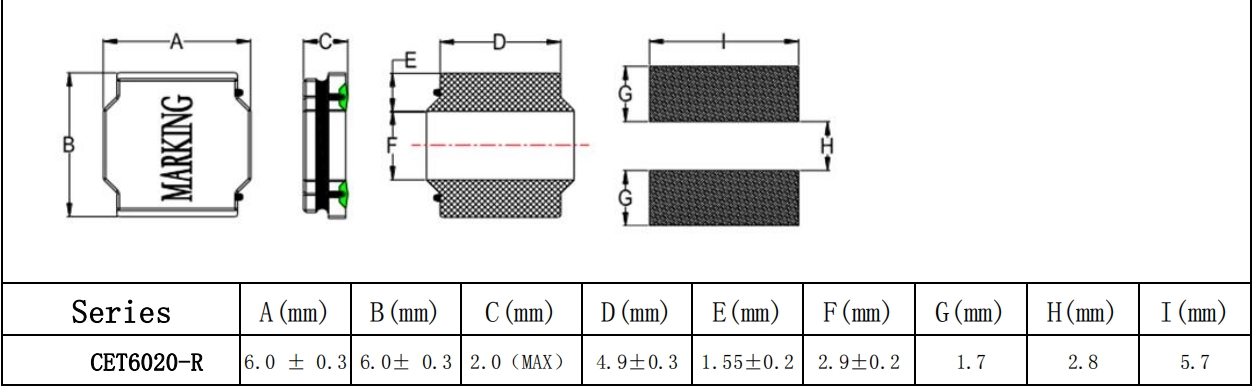

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -40℃ to +125℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
