CET0430H系列

型号

电感值

(μH)

DCR

(mΩ)

Isat

(A)

Irms

(A)

工作温度

(℃)

 封装 文件下载 购买
0.47 6.9
10.9
 10.6 -55~150.0 SMD 立即购买
1.0 19.0
10.0
 6.5 -55~150.0 SMD 立即购买
1.5
24.0
7.0
5.0
 -55~150.0 SMD 立即购买
2.2
29.0
 6.5 4.5 -55~150.0 SMD 立即购买
3.3
38.0
4.5
3.7
 -55~150.0 SMD 立即购买
4.7 44.0 3.2 3.6 -55~150.0 SMD 立即购买
10.0 120.0 3.0 2.5 -55~150.0 SMD 立即购买

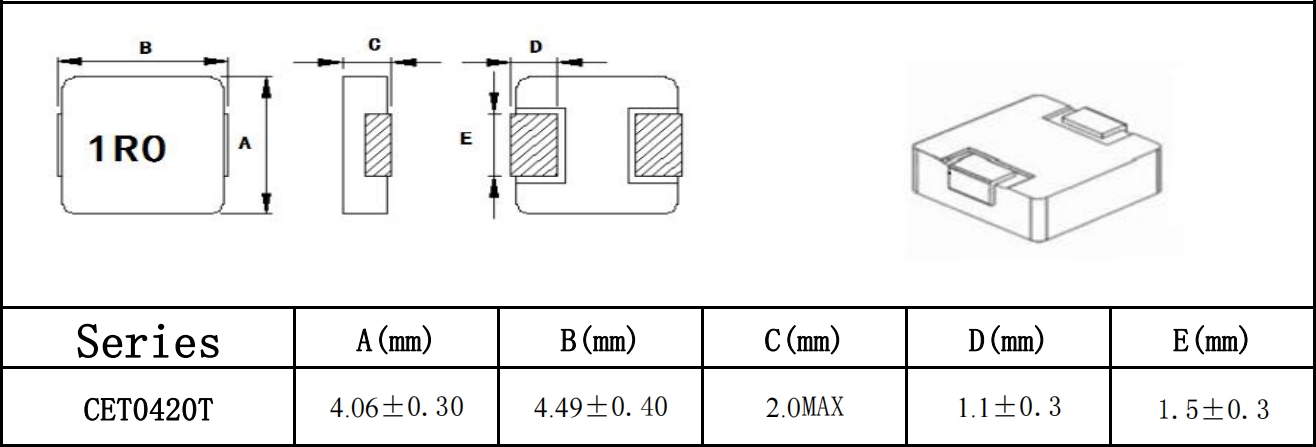

尺寸

产品参数

1. All test data is referenced to 25℃ ambient
2. Operating Temperature Range -55℃ to +150℃
3. Irms : DC current (A) that will cause an approximate △T of 40℃
4. Isat : DC current (A) that will cause Lo to drop approximately 30%
5. Test Frequency: 100KHZ,1.0V
